• Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 450 Mbps)
• IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)

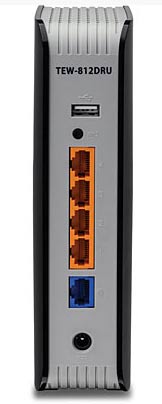

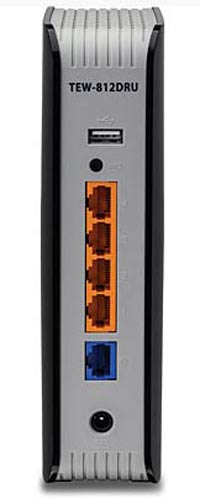

• Hardware Interface
• 4 x Gigabit LAN ports
• 1 x Gigabit WAN port
• USB 3.0 (Storage FTP, Samba, Printing)
• Power switch (EU only)
• WPS button

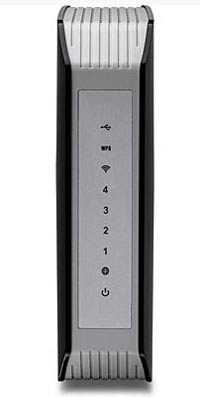

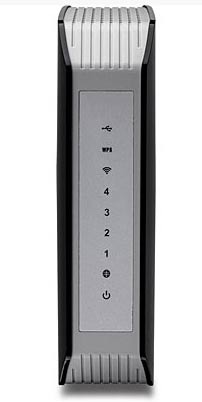

• LED indicators
• Security
• Wireless encryption up to WPA2
• Firewall: NAT, SPI
• Parental (Access) Controls: MAC, URL, IP Filter
• System Requirements
• Optional USB Printing utility: Windows: 8.1, 8, 7, Vista, XP, Mac OS X: 10.8, 10.7, 10.6, 10.5, 10.4
• Special Features
• QoS Management
• IPv6 support
• WDS support
• Up to 3 multiple SSID per band
• 1 guest network per band with option for Internet access only
• DDNS support for dyn.com & no-ip.com
• Samba/FTP server support
• Multi-Language interface: English, French, Spanish, German, Russian
• Open Source
• Compatible with DD-WRT Firmware
• Antenna Gain
• 2.4 GHz: 6 dBi (Max) internal/5 GHz: 6 dBi (Max) internal
• Wireless Output Power/Receiving Sensitivity
• 802.11a: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 54 Mbps
• 802.11b: 19 dBm (Max) /-84 dBm (typical) @ 11 Mbps
• 802.11g: 18 dBm (Max) /-72 dBm (typical) @ 54 Mbps
• 802.11n: FCC: 18 dBm (Max) /-68 dBm (typical) @ 450 Mbps 2.4 GHz
• 802.11n: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 450 Mbps 5 GHz
• 802.11ac: FCC: 23 dBm, CE: 19 dBm (Max)/-55 dBm (typical) @ 1.3 Gbps
• Power
• Input: 100 - 240 V, 50 – 60 Hz, 0.8 A
• Output: 12 V DC, 2 A
• Consumption: 21 Watts (Max)
• Operating Temperature
• 0 - 40°C (32 - 104°F)
• Operating Humidity
• Max 90% non-condensing
• Certifications
• CE
• FCC
• Dimensions/Weight
• 48 x 155 x 180 mm (1.8 x 6.1 x 7.1 in)
• 395 g (14 oz.)
• Warranty
• 3 year limited

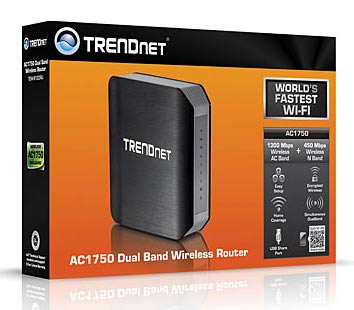

Package Contents
