| Hardware Specifications |
| CPU |
| CPU Model | Embedded NVR SoC |
| CPU Architecture | 32-bit |
| CPU Frequency | Dual Core 1.0 GHz |
| Memory |
| System Memory | 1 GB DDR3 |
| Storage |
| Drive Bay(s) | 2 |
| Maximum Drive Bays with Expansion Unit | 7 |
| Compatible Drive Type (See all supported drives) | - 3.5" SATA III / SATA II HDD
- 2.5" SATA III / SATA II HDD
|
| Maximum Internal Raw Capacity | 20 TB (10 TB HDD x 2) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 70 TB (10 TB HDD x 7) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 16 TB |
| External Ports |
| USB 2.0 Port | 2 |
| USB 3.0 Port | 1 |
| eSATA Port | 1 |
| Video Outputs |
| Video Output | HDMI X 1 |
| Audio Input | 3.5 mm Stereo Audio Jack x 1 |
| Audio Output | 3.5 mm Stereo Audio Jack x 1 |
| Appearance |
| Size (Height x Width x Depth) | 165 mm x 100 mm x 225.5 mm |
| Weight | 0.9 kg |

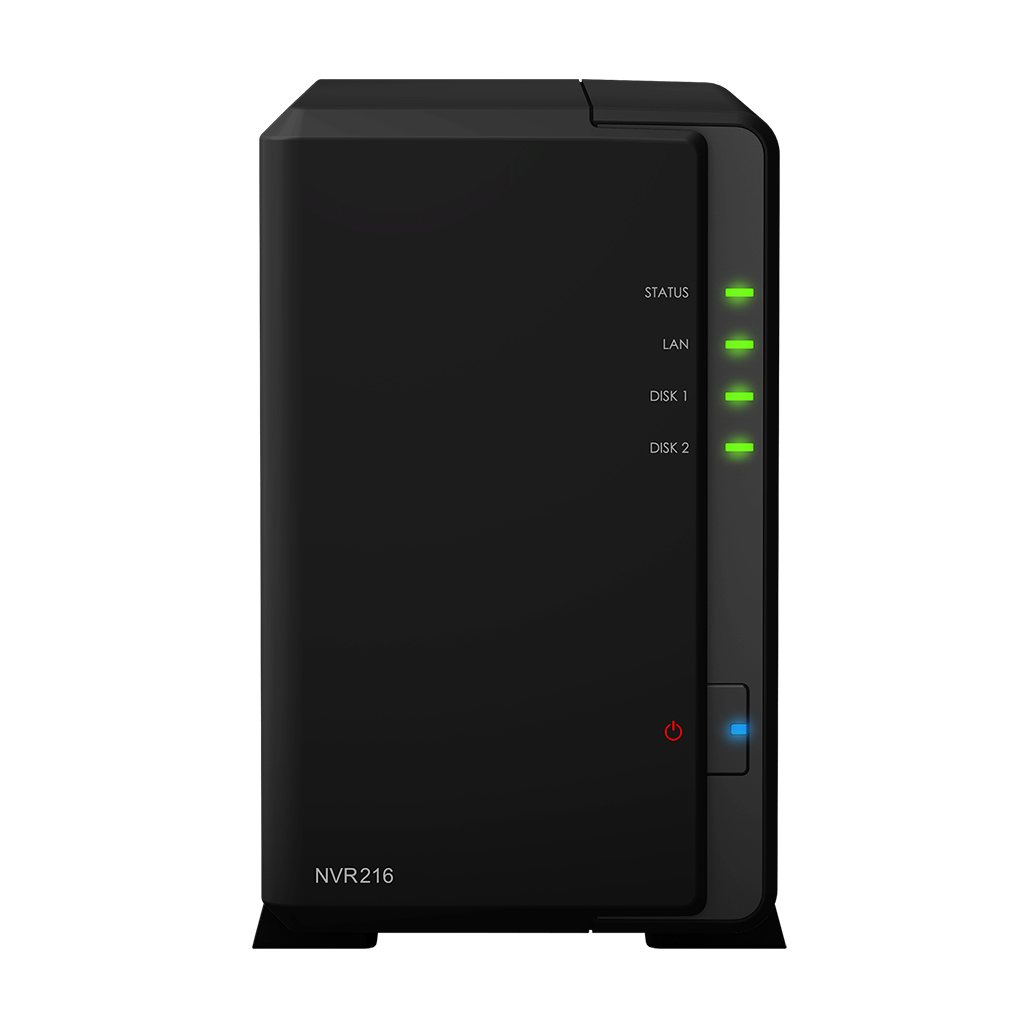

| NVR216 (4CH) |
| Maximum Channel Number | 4 (including 4 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 120 FPS @ 720p (1280x720), 4 Channels
120 FPS @ 1080p (1920×1080), 4 Channels
50 FPS @ 3M (2048x1536), 4 Channels
30 FPS @ 5M (2591x1944), 3 Channels |
| Total FPS (MJPEG)* | 90 FPS @ 720p (1280x720), 4 Channels
40 FPS @ 1080p (1920×1080), 4 Channels
10 FPS @ 3M (2048x1536), 1 Channel
10 FPS @ 5M (2591x1944), 1 Channel |
| NVR216 (9CH) |
| Maximum Channel Number | 9 (including 9 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 270 FPS @ 720p (1280x720), 9 Channels
90 FPS @ 1080p (1920×1080), 9 Channels
50 FPS @ 3M (2048x1536), 5 Channels
30 FPS @ 5M (2591x1944), 3 Channels |
| Total FPS (MJPEG)* | 90 FPS @ 720p (1280x720), 9 Channels
40 FPS @ 1080p (1920×1080), 4 Channels
10 FPS @ 3M (2048x1536), 1 Channel
10 FPS @ 5M (2591x1944), 1 Channel |
| Video Compression Format | - MJPEG
- MPEG-4
- H.264
- MxPEG(output via local display is not supported)
|
| Audio Codec | |
| Notes | In our test environment, the live view is delivered via a single web client and on Local Display at the same time; the video live-viewing and recording share the same video stream from the camera. Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. |
| Others |
| RJ-45 1GbE LAN Port | 1 |
| Wake on LAN/WAN | |
| System Fan | 80 mm x 80 mm x 1 pcs |
| Fan Speed Mode | |
| Power Recovery | |
| Noise Level* | 19 dB(A)
|
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 60W
|
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 14.14 W (Access)
5.09 W (HDD Hibernation)
|
| British Thermal Unit | 48.28 BTU/hr (Access)
17.38 BTU/hr (HDD Hibernation)
|
| Environment Temperature |
| Operating Temperature | 5°C to 45°C (40°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | - FCC Class B
- CE Class B
- BSMI Class B
|
| Warranty | 3 Years |
| Notes | - Support for Wake on WAN needs switch and routers which recognize Magic Packet.
- Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
|
| DSM Specifications ( See more ) |
| File System |
| Internal Drives | EXT4 |
| External Drives | - EXT4
- EXT3
- FAT
- NTFS
- HFS+ (Read Only, with max. volume size 2TB)
|
| Storage Management |
| Maximum Internal Volume Number | 256 |
| Supported RAID Type | - Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
|
| RAID Migration | - Basic to RAID 1
- Basic to RAID 5 (with Expansion Unit)
- RAID 1 to RAID 5 (with Expansion Unit)
- RAID 5 to RAID 6 (with Expansion Unit)
|
| Volume Expansion with Larger HDDs | - Synology Hybrid RAID
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
|
| Volume Expansion by Adding a HDD | - Synology Hybrid RAID
- RAID 5 (with Expansion Unit)
- JBOD (with Expansion Unit)
|
| Global Hot Spare Supported RAID Type | - Synology Hybrid RAID (with Expansion Unit)
- RAID 1 (with Expansion Unit)
- RAID 5 (with Expansion Unit)
|
| System Management |
| Maximum User Accounts | 1024 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 256 |
| Windows Access Control List (ACL) Integration | |
| Log Center | |
| Syslog Events per Second | 100 |
| Add-on Packages |
| VPN Server | |
| Maximum Connections | 5 |
| Environment & Packaging |
| Environment | RoHS Compliant |
| Packaging Content | - Main Unit X 1
- Welcome Note X 1
- Accessory Pack X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 1
|
| Optional Accessories | - Expansion Unit: DX213 X 1
- Expansion Unit: DX513 X 1
- Disk Holder: Type C
|
